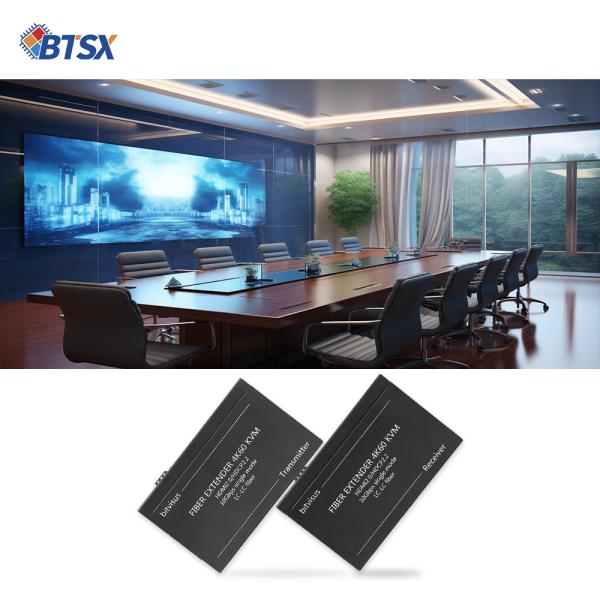

BIT-Ex-Fib-IP-4K-KVM
1. BIT-Ex-Fib-IP-4K-KVM is a zero-delay and uncompressed long-distance transmitter. The industrialized design has both texture and solid internal protection, and is easy to install.
2. Select the most advanced video processing chip in the industry, with powerful functions, high picture restoration, long transmission distance, and low power consumption.
3. The farthest transmission distance of optical fiber can be supported up to 30 kilometers, HDMI interface input and output, no delay in transmission, no compression, and no artifacts.
4. The output terminal supports custom settings of conventional video resolutions to match different display devices. The maximum supported resolution is 3840x2160@30Hz, and it is backward compatible with low resolutions.
5. Adopt pure hardware design architecture, without any software driver, plug and play.
6. Support two-way RS232 communication function.
7. Support USB-KVM function, double USB interface to connect mouse and keyboard.
8. Learn EDID, read the display EDID for easy use.
Specification
| Input Transmitter(TX) |
HDMI1.4(≤5m),IR,RS232 signal |
| Input Receiver(RX) |
LC-LC single-mode single-core fiber,10KM |
| Output Transmitter(TX) |
LC-LC single-mode single-core fiber,10KM |
| Output Receiver(RX) |
HDMI1.4(≤5m),IR,RS232 signal |
| Output Audio |
HDMI audio out |
| Supported resolution |
4K30Hz is backward compatible with standard resolutions |
| Color space |
Support RGB444;YUV color space |
| Transmission bandwidth |
1Gbps |
| Support |
EDID,CEC,3D,Remote wake up,OEM |
| KVM |
USB 2.0,keyboard and mouse,U disk,radar,infrared touch,printer,etc |
| RS232 |
Two-way RS232 transparent transmission |
| Storage/operating temperature |
-10～50ºC/-25～55ºC |
| USE |
HDMI,KVM,RS232 signal extension |
| Packing list |
Equipment*2,Power supply*2,Double-ended USB cable*1,
Single-mode single-core optical module*2,
Certificate*1,Warranty card*1
|
| After-salesservice |
1 year warranty |
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment
(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1.Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
Product Tags:
|
|
Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission Images
|
