4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion

Brand Name : Bitvisus

Place of Origin : Guangdong, China

MOQ : 1

Price : Contact us

Model Number : BIT-VWC-109

Certification : CE,HDMI,HDCP,RoHS,FCC

Payment Terms : T/T,PayPal

Supply Ability : 1000

Delivery Time : 5-8 days

Packaging Details : 545mm x 465mm x 120mm

Input interface : 1xHDMI2.0, support HDCP2.2

Output interface : 9xHDMI1.3 (≤15m), 1xHDMI2.0 ring out

Input resolution : 3840x2160@60Hz/5760x3240@30Hz

Output resolution : 1920x1200@60Hz, 1920x1080@60Hz (customizable)

Input pixel frequency : 600MHz

Output pixel frequency : 165MHz

Color depth : 24bit, RGB888

Audio output : HDMI with output, 3.5mm audio interface

Control mode : IR remote control, RS232 serial port, PC upper computer

Output rotation : 180° rotation of the first line of output

Power supply : DC 12V 2A

Power consumption : 12W

Storage temperature : -10～50ºC

Working temperature : 0～50ºC

Package size : 360mm x 215mm x 70mm / 545mm x 465mm x 120mm

Package weight : 1.7KG / 2.8KG

Contact Now

Features
Video Wall Controller
●Support 1 way HDMI input (4K@60Hz), 9 way output HDMI (1080p@60Hz), 1 way HDMI ring out.

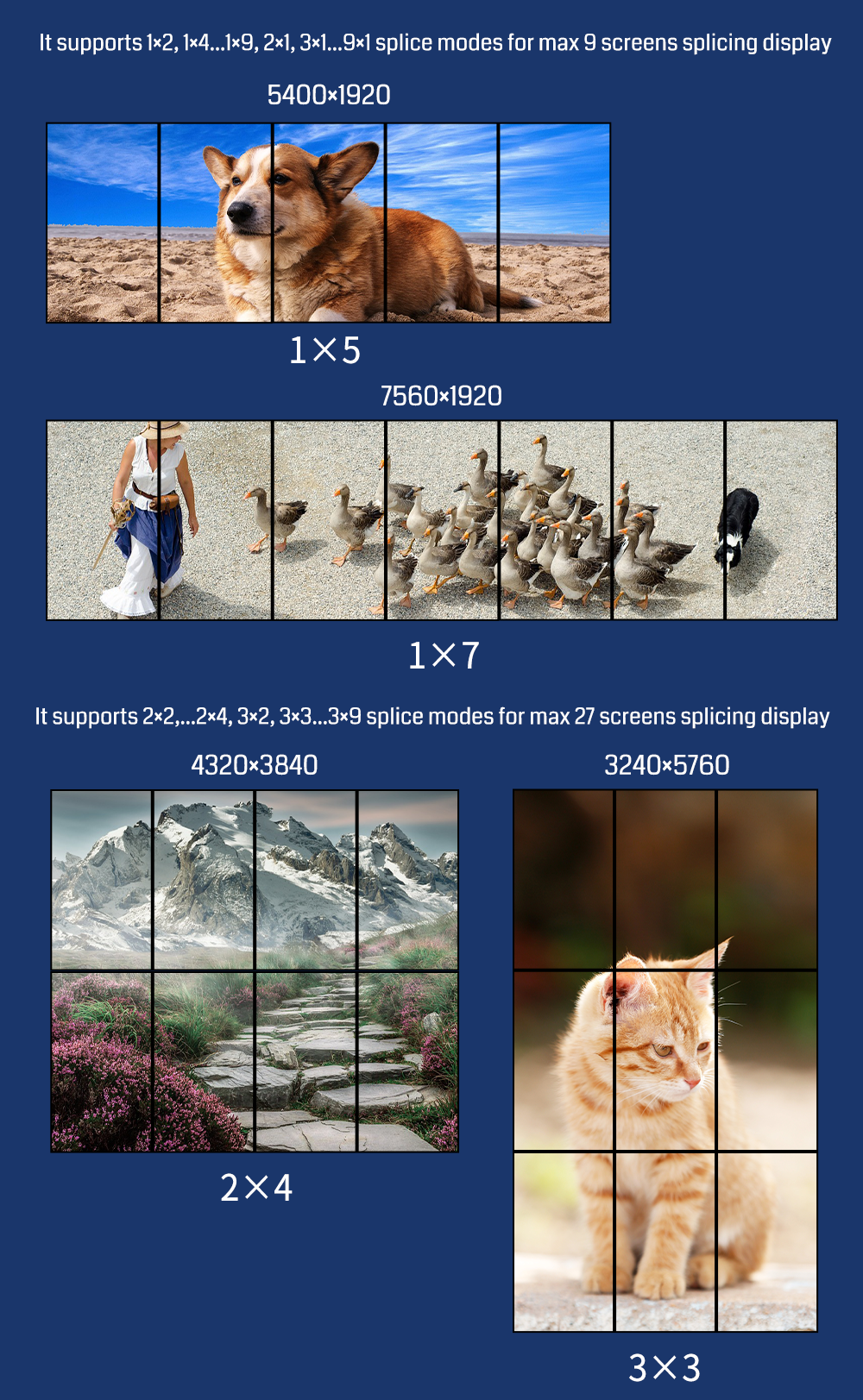

●Multiple splicing modes can be arbitrarily combined: horizontal/vertical picture/live, support mass parallel connection. ●Input support up to 3840x2160@60Hz/5760x3240@30Hz. ●Output supports 180° rotation of the first row. ●No stretching, no distortion, no need to compress the input source, clear picture. ●Support IR control, serial RS232 control. ●Support computer, Android box, game console and other devices as input source. ●Adopt 28nm high-end programmable FPGA chip, pure hardware design, no delay.

Application Scenario Mainly used in ultra-high-definition video surveillance, large screen wall, store advertising large screen, exhibition display large screen and other industry applications

☞Contact customers
Welcome to consult the project function requirements!

Product Description
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
4K@60Hz Video Wall Controller with 9 HDMI Outputs and FPGA Chip for Multi-Screen Expansion
Input
Input interface
1xHDMI2.0，support HDCP2.2
Input source
Support for computers, Android boxes, game consoles and other devices
Input interface maximum video pixel frequency
600MHz
Color depth
24bit，RGB888
Output
Output interface
9xHDMI1.3（≤15m）
1xHDMI2.0 ring out
Output interface maximum video pixel frequency
165MHz
Resolution
1920x1200@60hz
1920x1080@60hz (customizable)
Color depth
24bit，RGB888
Audio follow out
customizable
Audio and video separation
Support 3.5mm audio interface
Other
Control mode
infrared remote control, RS232 serial port, PC upper computer
Output rotation
180° rotation of the first line of output
OEM
support
Power supply
DC 12V 2A
Power consumption
12W
Storage/working temperature
-10～50ºC/0～50ºC
